Off Grid Video Surveillance: Your Complete Setup Guide
- Бонус за регистрацию онлайн казино
- 1 day ago
- 14 min read
Understanding Your Remote Security Reality
Before you even look at a camera, let's talk about the gap between the slick marketing brochures and the harsh reality of the outdoors. After talking with installers who’ve set up off grid video surveillance systems everywhere from remote Alaskan hunting cabins to dusty Nevada construction sites, one truth stands out: what you think you need is rarely what you actually need for a system to survive in the wild.
Overestimating Coverage, Underestimating Power
The most common mistake we see is the desire to cover every square inch of a property. It’s a natural impulse, but in an off-grid setting, it’s the fastest way to system failure. You end up with a network of power-hungry devices that your solar setup can't sustain, especially after a few cloudy days. Think of it less like a city-wide CCTV network and more like a series of strategic digital tripwires.
A perfect example comes from a construction site manager who wanted ten 4K cameras to watch his entire perimeter. On paper, it sounded secure. In reality, the power draw would have required a solar array the size of a small car. His system would have died within 48 hours of the first overcast sky. The core of a reliable system is power efficiency, not wall-to-wall coverage. You're building a system that sips power, not one that guzzles it.
Identifying What Truly Matters
The smarter approach is to abandon the idea of total surveillance and focus on critical monitoring zones. This requires a ruthless assessment of your property to pinpoint the absolute most important areas to watch. Instead of trying to see everything, you aim to see the right things. Start by walking your property and identifying the most likely points of entry or risk.
Your list of critical zones might include:
The primary access gate or the start of your main driveway.
Areas where you store high-value assets like fuel tanks, heavy equipment, or ATVs.
The main doors and vulnerable windows of your cabin or storage building.
Specific chokepoints where an intruder would be forced to pass.
This focused strategy dramatically reduces your power needs and data consumption, making your system far more robust. It's also about understanding environmental threats. We’ve seen property owners learn expensive lessons when a black bear decided a camera pole made a great scratching post, or when a cheap plastic housing cracked during the first deep freeze, rendering a $300 camera useless. The global video surveillance market's growth, projected to reach $89.7 billion by 2025, is fueled by IP systems often designed for climate-controlled environments with constant power. Explore the full scope of market growth and trends. This isn't about buying the fanciest gear; it’s about building a tough, targeted system that actually works when you're miles away and can’t babysit it.
Choosing Equipment That Actually Survives
Why IP Ratings Are Just the Beginning
Every outdoor camera will advertise an IP rating, like IP66 or IP67, which indicates how well it resists dust and water. While that's a decent starting point, it's not the full story. I’ve seen two cameras with the exact same IP rating behave completely differently in the field. The real difference often boils down to the quality of the materials.
A camera built with a cheap plastic housing might look fine out of the box, but that plastic can become brittle and crack after a year under the harsh desert sun. On the other hand, a unit with a solid metal housing will stand up much better to temperature swings and the occasional bump from a falling branch or a curious animal. If you're near the coast, you have another adversary: salt air, which loves to corrode connectors and sneak past the seals on poorly constructed gear.
The Hidden Power Drain That Kills Off-Grid Systems
Here's a little secret that camera manufacturers don't like to advertise: the power consumption listed on the box is almost always the idle number. For a system running on solar power, this can be a fatal oversight. A camera might only sip 0.5 watts while it's waiting for something to happen, but that number can jump dramatically the second it detects motion.
Firing up the infrared (IR) illuminators for night vision, writing video to an SD card, and transmitting footage over a cellular network can easily push the power draw to 5 watts or even 10 watts. This sudden spike is what will drain your battery bank faster than you expect. When you're comparing cameras, try to find real-world tests or user reviews that talk about power consumption under a full load. This is especially true for IR night vision—a camera might claim a 100-foot range, but the image could be a grainy, useless mess, all while eating up precious power.
To put this into perspective, let's look at how different camera types stack up in terms of their power needs. The table below shows the estimated continuous run time for different cameras on a standard 12V 50Ah battery (600Wh capacity), which is a common size for smaller off-grid setups.
Camera Type | Power Consumption (Watts) | Battery Life (Hours) | Best Use Case |
|---|---|---|---|
Low-Power PIR Camera | Idle: <0.5W, Active: 2-4W | 150-300 | Trigger-based monitoring for low-traffic areas like gates or trails. |
Standard 4G PTZ Camera | Idle: 2-3W, Active: 8-15W | 40-75 | Active monitoring of larger areas like construction sites or pastures. |
High-Performance 4K Camera | Idle: 4-5W, Active: 15-25W | 24-40 | High-detail security for critical assets where image clarity is paramount. |
As you can see, choosing a camera that's a good match for your site's activity level is critical. A high-power camera in a low-traffic area is just a waste of energy and will require a much larger solar and battery system to keep running.
Your Lifelines: Reliable Storage and a Strong Signal

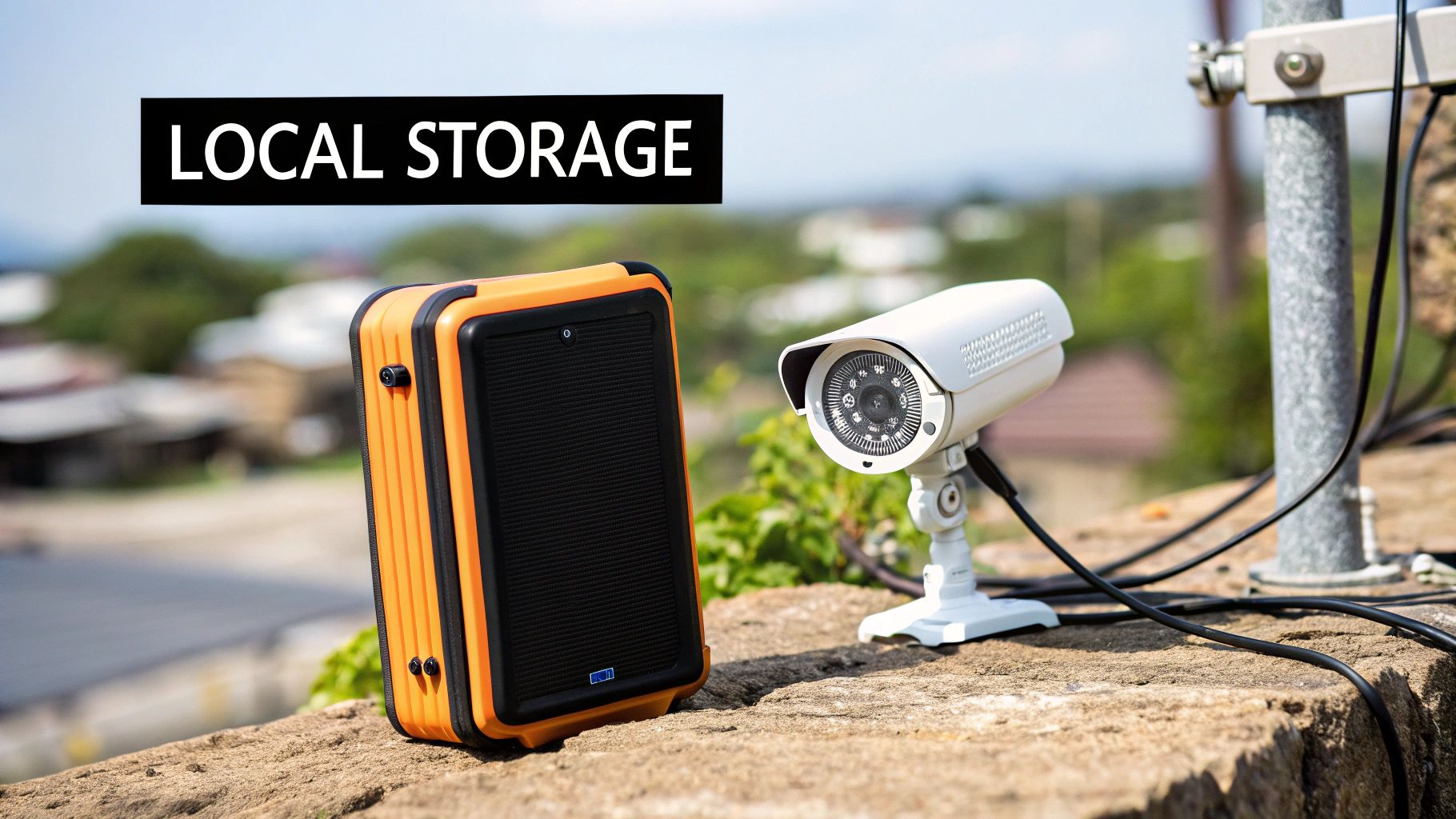

In an off-grid system, your recording and connection methods are everything. Most cellular cameras use an internal SD card for local storage, and this is not the place to save a few dollars. You absolutely need a high-endurance card made specifically for the constant write-and-rewrite cycle of a security camera. A standard consumer card wasn't built for that kind of abuse and will likely fail within months, leaving you completely blind.
Just as critical is the cellular connection. A quality off-grid camera will have a superior modem and antenna design that can find and maintain a signal in fringe areas where your cell phone gives up. The global CCTV market is booming—expected to hit $12.4 billion by 2025 and projected to grow to $25 billion by 2035. While this means more options, it also means a flood of subpar products. Taking the time to find rugged, power-efficient gear with a proven connection is the most important investment you'll make. Discover more about these market trends to see how the industry is evolving.
Mastering Off Grid Power Management
Let's talk about the single biggest point of failure for any off grid video surveillance system: power. So many projects fall short here because people grab a generic solar calculator online, plug in a few numbers, and trust the results. This is a huge mistake. Those calculators often rely on "peak sun hours" and don't account for the messy reality of a long stretch of cloudy winter weather.
Think about it this way: a basic calculator might get you through a perfect sunny week in July, but a serious security system needs to be built for a miserable, overcast week in November. Your system's survival depends on planning for the worst-case scenario, not the best.
Sizing Your Battery Bank for Survival
The secret to a reliable system isn't just about the size of your solar panels; it's about the capacity of your battery bank. The goal is to build in days of autonomy—that's the number of consecutive days your cameras can run on battery power alone, with zero help from the sun. For any security application that truly matters, three to five days of autonomy should be your absolute minimum. This buffer is what keeps your system online through a storm or a string of cloudy days.
To figure this out, you need to look at the total daily power your equipment will draw, the usable capacity of your batteries, and your autonomy goal. A critical part of this is the 50% depth-of-discharge rule. You never want to drain your batteries completely, as it drastically shortens their lifespan. By planning to only use half their capacity, you ensure they last for years.
To give you a practical starting point, here is a quick guide for sizing a system based on common camera setups. This table assumes a conservative three days of autonomy and a safe 50% battery discharge.
Solar Power System Sizing Guide | |||
|---|---|---|---|
Number of Cameras | Daily Power Consumption | Recommended Solar Panel Size | Battery Bank Capacity |
1 Low-Power Camera | ~50 Wh | 50W | 50Ah @ 12V |
2-3 Standard Cameras | ~150 Wh | 100W | 100Ah @ 12V |
4-5 Mixed-Use Cameras | ~350 Wh | 200W-300W | 200Ah @ 12V |
As you can see, the power requirements scale quickly. This approach forces you to stop hoping for sunshine and start planning for its absence, which is the cornerstone of a resilient off-grid system.
Maximizing Efficiency for Long-Term Operation
Once you have your core power system sized correctly, you can squeeze even more performance out of it with a few smart adjustments. For example, simply changing your solar panel’s tilt angle between summer and winter can boost its output by up to 25%. Another easy win is to regularly clean dust, pollen, and grime from the panels to prevent slow and steady power loss over time.
A dependable power system is the foundation for everything else, especially data transmission. This is the process that gets the video footage from your remote site to your screen.

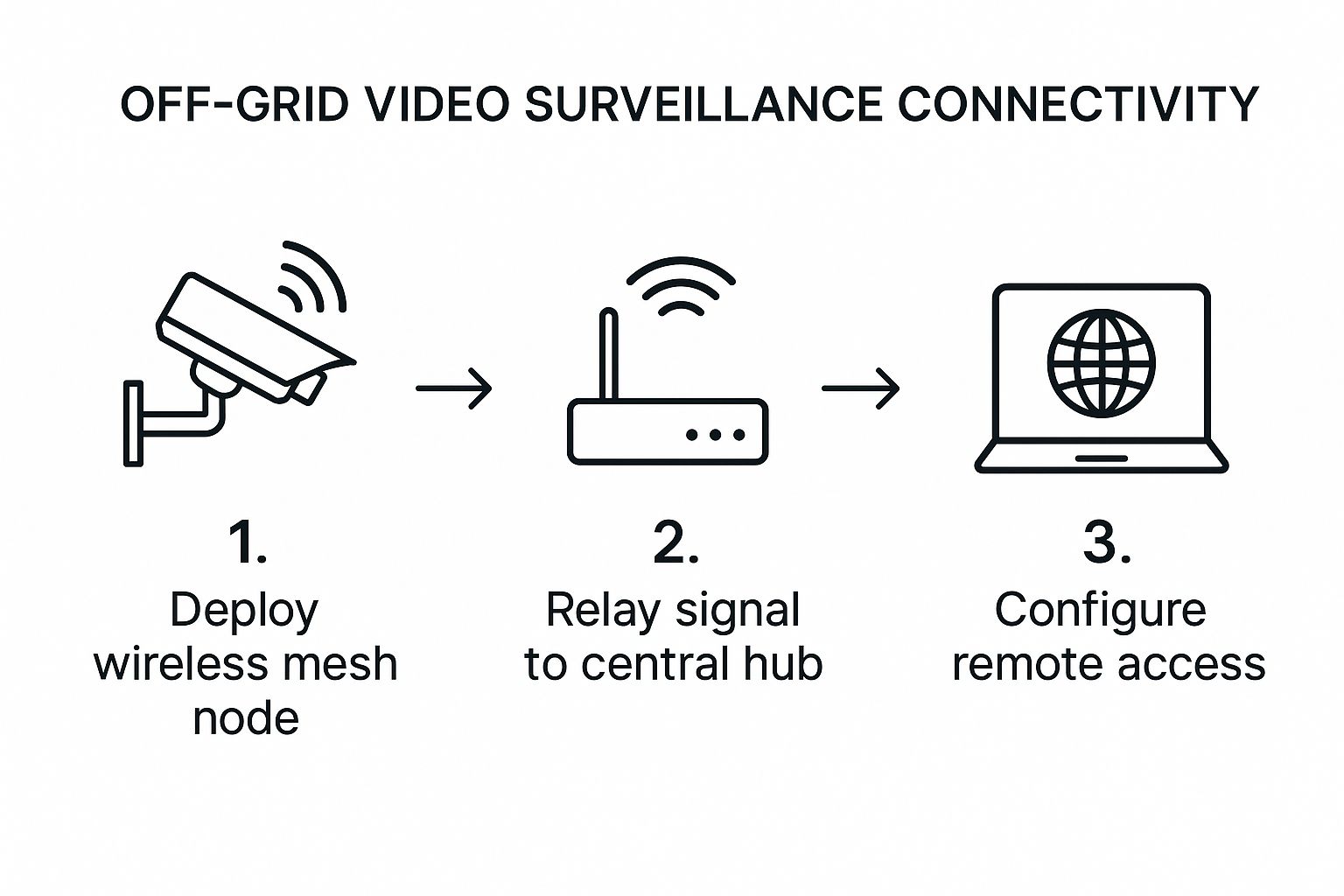

The diagram above shows how reliable connectivity is a chain of devices, and each link in that chain needs constant power to work. This is why slightly overbuilding your power system isn’t just being cautious; it’s about making sure every component, from the camera to the network switch, stays active when you need it most. For a truly professional setup designed for specific environmental challenges, you might consider contacting experts like PCI Audio-Video Security Solutions.
Building Reliable Remote Connections
Cellular Solutions for the Fringe
Before you commit to a 4G router or a specific camera, your first move should be to buy a few prepaid SIM cards from the major carriers in your area. Take them to the exact spot where your camera will be mounted and test them. Carrier coverage maps are famously optimistic and what works perfectly at your front gate might be a dead zone 500 yards up the hill.
Once you find a carrier that provides even a faint, usable signal, you can work magic. By pairing a directional Yagi antenna with a quality cellular signal booster, you can transform a barely-there connection into a stable link for your system's router. This kind of setup is far more powerful than any camera's built-in antenna and is standard procedure for any serious remote deployment.
Beyond Cell Towers: Satellite and PTP
For those truly remote sites where cell service is just a dream, satellite internet becomes your lifeline. Services like Starlink can deliver impressive speeds, but they come with a major catch for solar-powered setups: power consumption. You'll need to account for its continuous 50-75 watt power draw, which means a much larger battery bank and solar array. Other satellite providers might offer slower speeds but are often more forgiving on power usage.
Here’s a smart alternative if you're working on a large property: a Point-to-Point (PTP) wireless bridge. If you have a solid internet connection at a main house, barn, or office, a PTP system can beam that connection wirelessly for miles, as long as there’s a clear line of sight. This creates a private, high-speed link to a remote gate or outbuilding with no additional monthly data fees.
This constant need for better remote access is fueling major shifts in the security world. The incredible growth in Video Surveillance as a Service (VSaaS), which depends entirely on cloud connectivity, really tells the story. The VSaaS market hit $3.5 billion last year and is expected to grow at an annual rate of 18.5% through 2031, all because people demand reliable remote monitoring. You can discover more about the mobile surveillance evolution and see where the industry is headed.
Finally, a stable connection is also about smart data management. Configure your cameras to stream a low-resolution substream for quick, casual check-ins, reserving the full-resolution main stream for recording motion-triggered events. And never skip this part: always install a high-endurance SD card for local recording. It's your ultimate backup, guaranteeing you capture critical footage even if your remote link temporarily goes down.

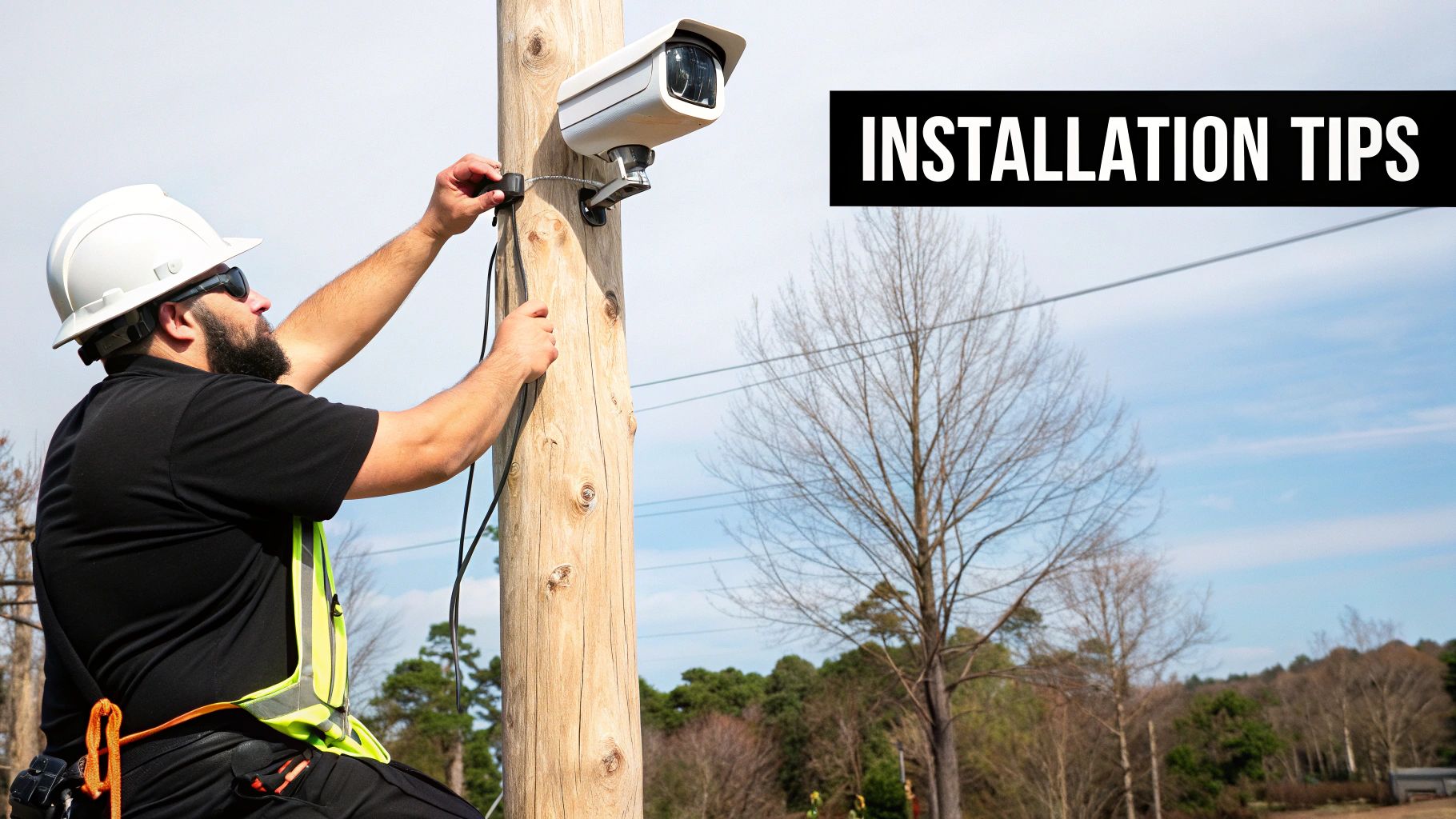

Installation Techniques That Last
When you're installing an off grid video surveillance system, the rules of the game change entirely. The nearest hardware store could be an hour's drive away, so the standard brackets and zip ties that come in the box just aren't going to hold up. Your setup needs to survive everything from high winds and drastic temperature changes to the occasional curious black bear, all without needing a return trip for a simple tweak.
Securing Your Gear Against the Elements
A camera's mount is its foundation. Forget the small screws included in the packaging and opt for heavy-duty lag bolts to anchor mounts into solid surfaces like trees or thick wooden posts. If you're mounting on a pole, especially in an area where the ground freezes and thaws, pour a small concrete footing. This creates a rock-solid base that won't budge with the seasons. I once heard a story from an installer who had to fix a system after a bear decided to use the camera pole as a scratching post, completely ruining the view. A sturdier mount would have saved him the trip.
Weatherproofing is also about more than just the camera's IP rating. An IP rating tells you the housing can resist water, but it does nothing for your exposed cables and connectors. A simple pro technique is to create a drip loop—a small, U-shaped dip in the cable just before it enters a junction box or wall. This tiny detail forces rainwater to drip off the bottom of the loop instead of flowing right into your sensitive electronics. For total protection, seal any entry points with outdoor-rated silicone and run any exposed wiring through a metal or PVC conduit. This not only keeps moisture out but also stops squirrels from chewing through your connection.
Outsmarting Thieves and Prying Eyes
Unfortunately, theft of equipment at remote sites, especially solar panels, is a real and growing concern. The most effective defense is to make your gear as difficult to spot as possible. Mount your cameras high up on poles or trees, well out of casual reach. A can of matte, camouflage spray paint can work wonders to help the camera housing and mounting hardware blend seamlessly into the background. Your goal is discreet surveillance, not advertising that you have valuable equipment sitting unattended.
Positioning is a careful balance between achieving the perfect angle and protecting the camera. Look for spots where your camera has a natural "backstop," like pressed against a large tree trunk or tucked neatly under the eave of a building. This shields it from the worst of the weather and makes it much harder to see from a distance.
For anyone heading out to install a system alone, your toolkit and a solid safety plan are non-negotiable.
A reliable battery-powered drill with extra batteries and a complete set of bits.
A multimeter for diagnosing power issues right at the source.
A variety of fasteners, including lag bolts, wood screws, and concrete anchors.
Outdoor-rated silicone sealant and good quality electrical tape.
A sturdy ladder or the right climbing gear for those high-up mounts.
Most importantly: A plan to let someone know exactly where you are and when you expect to be back.
Packing these items can easily turn a trip-ending disaster into a quick, five-minute fix.
Maintaining Systems From Anywhere
Proactive Remote Health Checks
A quality remote system gives you vital health statistics that go far beyond a simple live video feed. I recommend making it a weekly habit to dig into these numbers. Instead of just glancing at the battery percentage, look at the voltage trends over time. A battery that consistently struggles to reach a full charge by midday is an early warning that it might be failing or, more likely, that your solar panel is just dirty.
Similarly, your solar charge controller’s app can show you the incoming wattage. If it's a bright, sunny day and you're seeing just a fraction of your panel's rated output, it's probably time to plan a cleaning trip. Finally, never just assume your cameras are recording. Periodically download a short, recent clip. This quick test confirms the camera is online and that its high-endurance SD card is functioning correctly—a common failure point that can leave you completely blind when you need the footage most.
The Art of Long-Term Upkeep
For physical, on-site work, effective maintenance revolves around a seasonal schedule, not a weekly one. Your site visits should be purposeful and timed with the changing weather to get ahead of predictable failures.
Spring Checkup: After the winter thaws, your first trip should involve cleaning pollen and grime off the solar panels to maximize summer charging. It's also the perfect time to inspect all the mounts and enclosures for any damage from ice or heavy snow. I always bring clippers to trim back any new vegetation that could block a camera's view or cast a power-draining shadow.
Autumn Prep: Before the first freeze hits, double-check all your weatherproof seals and cable entry points to ensure they're snug. The most important task is to adjust your solar panel’s tilt angle to better catch the low winter sun. This simple adjustment can boost power generation significantly during the darker months.
This planned approach should also extend to managing component failures. For any serious deployment, a small stock of spare parts is non-negotiable. I always keep a pre-configured spare camera, a backup charge controller, and extra connectors ready to go.
Simple documentation—like a laminated wiring diagram and a list of component models—is invaluable, especially if you ever need to hire a local handyman for a simple part swap. Building a relationship with a trusted local contact can be worth its weight in gold, saving you countless hours of driving. A well-maintained system isn't just about preventing failures; it's about building a reliable asset that provides peace of mind for years to come.
Optimizing Performance And Future Growth
Getting your off grid video surveillance system installed and powered on is a huge milestone. But the work doesn't stop there. To really get the most out of your investment, you need to think about how the system will perform over the long haul and grow with your needs. A truly resilient system is one that evolves with you.
Fine-Tuning for Maximum Efficiency
One of the biggest remote adjustments you can make is fine-tuning your motion detection. Straight out of the box, a camera might bombard you with alerts from swaying tree branches, burning through precious battery life and data while filling your storage with useless clips. Take some time to dive into your camera's settings to adjust its sensitivity and create specific detection zones, effectively telling the camera what to ignore.
This is where modern cameras with on-board AI really prove their worth. Instead of just reacting to simple pixel changes, they can tell the difference between a person, a vehicle, and a passing deer. This kind of intelligence can cut false alarms by over 90% in some field tests, which means you’re only notified about events that actually matter. When you combine this with smart recording schedules—like recording continuously during high-risk overnight hours but only on motion during the day—you can conserve a massive amount of power and data.
Planning Your System's Next Chapter
Sooner or later, your security needs will change, and you'll hit a fork in the road: should you expand the system or optimize what you have? Before you impulsively add another camera to the shopping cart, perform a quick audit of your power budget. Can your current solar and battery setup comfortably handle another device, especially through a bleak, cloudy week in winter? Often, the smarter and more cost-effective move is to optimize what you already have.
For instance, instead of adding a second fixed camera to watch over a large field, consider replacing an existing one with a single PTZ (Pan-Tilt-Zoom) model. This lets you actively survey the entire area and gives you far better situational awareness without drastically increasing the power load. This is why keeping detailed documentation—like a power budget spreadsheet and a wiring diagram—is absolutely crucial for future planning. This prep work turns a potential upgrade from a major headache into a straightforward, predictable project.
Planning a complex off-grid project requires expertise. If you need a system designed for resilience and future growth, the experts at PCI Audio-Video Security Solutions can help you build the right solution from the ground up.
