Your Guide to a Modern PoE Camera System

A PoE camera system is a brilliant solution for modern security. It uses a single, standard Ethernet cable to transmit both video data and electrical power to each camera. This clever design gets rid of the need for a separate power adapter at every camera location, which makes installation far cleaner, more flexible, and a whole lot easier than older surveillance systems.

Demystifying the Power Over Ethernet Advantage

Ever look at a professional security setup and wonder how they get such crisp video without a bird's nest of power cords? The secret is a technology called Power over Ethernet, or PoE. Think of it like a USB-C cable for your security network—one cord does it all, delivering a high-speed data connection and a stable electrical current at the same time.

This single-cable approach is precisely what has made the poe camera system the go-to standard for reliable security in both homes and businesses. It solves one of the biggest installation headaches: figuring out how to get power to every single camera. Suddenly, you can place cameras in the far corners of a parking lot, on high warehouse ceilings, or in discreet spots outdoors without calling in an electrician.

Simplicity and Reliability Combined

The real beauty of a PoE camera system lies in its simple, logical design. Instead of juggling two distinct networks—one for power wiring and another for data cables—you only have to manage one. This not only makes the physical installation a breeze but also simplifies troubleshooting and maintenance down the road.

This shift toward streamlined security is clearly visible in the market's growth. The global PoE camera market was valued at around $1.5 billion in 2023 and is on track to hit $3.6 billion by 2032. This surge shows just how much people value dependable, easy-to-manage security. For a deeper dive, you can check out the full PoE camera market report to see these trends for yourself.

The core 'aha' moment for most people is realizing PoE isn't just about convenience. It’s about building a fundamentally more stable, robust, and scalable security infrastructure from the ground up.

How PoE Stands Out

To really get why PoE is so popular, it helps to see how it stacks up against other common security camera setups. Each type has its own way of handling cables, power, and installation, which directly affects the system's cost, reliability, and flexibility.

The table below gives you a quick side-by-side look at the major differences you'll find when choosing a system.

PoE vs. Other Security Camera Systems

Feature	PoE Camera System	Traditional Analog System	Wireless (Wi-Fi) System
Cabling	Single Ethernet cable for power & data	Two separate cables: one for video, one for power	No data cable (uses Wi-Fi), but still needs a power cable
Power Source	Centralized (PoE switch or NVR)	Individual power adapter at each camera location	Individual power adapter at each camera location
Installation Complexity	Moderate: requires running one cable per camera	High: requires running two separate cables	Low: minimal cabling, but requires strong Wi-Fi signal

As you can see, PoE hits a sweet spot. It offers the rock-solid, hardwired reliability of a traditional system but with a much simpler installation process. It's easy to understand why so many people are choosing PoE for both brand-new security projects and major system upgrades.

The Building Blocks of Your PoE Security System

A solid PoE camera system works a lot like a well-oiled machine, where every part has a critical job to do. Getting a handle on these components is the first step to building a surveillance network that you can actually rely on. So, let's pull back the curtain and look at the essential pieces that make up any modern PoE setup.

Think of it as a simple, logical flow of power and information. It’s more than just cameras on a wall; it's about how those cameras get their power, talk to each other, and record what they see, 24/7.

The Eyes of the System: PoE Cameras

The most obvious parts of the system are the PoE cameras themselves. These are the "eyes" of your security operation, capturing everything that happens within their view. But these aren't your grandpa's security cameras; modern IP (Internet Protocol) cameras are incredibly smart devices.

Each one has a tiny processor inside that handles everything from capturing the image to compressing the video. Some can even perform intelligent tasks like motion detection on their own. Since they're PoE-enabled, they get all their power and send all their video data through a single Ethernet cable. This gives you amazing flexibility in where you can install them, no power outlet required. That dual function is the magic behind a great poe camera system.

The Brain: The Network Video Recorder (NVR)

If the cameras are the eyes, then the Network Video Recorder (NVR) is the brain. This is the central hub where all the video feeds from your cameras come together to be processed, managed, and stored. It’s essentially a dedicated computer that keeps your entire surveillance operation organized.

An NVR is a real workhorse, handling a few crucial jobs:

Recording: It saves all the video streams from your cameras onto internal hard drives.
Management: It gives you a single interface to watch live feeds, review recorded events, and tweak all your camera settings.
Remote Access: By connecting to your network, it lets you check in on your cameras from anywhere with a smartphone app or web browser.

For smaller setups, many NVRs come with PoE ports built right in, combining the system's brain and heart into one convenient box.

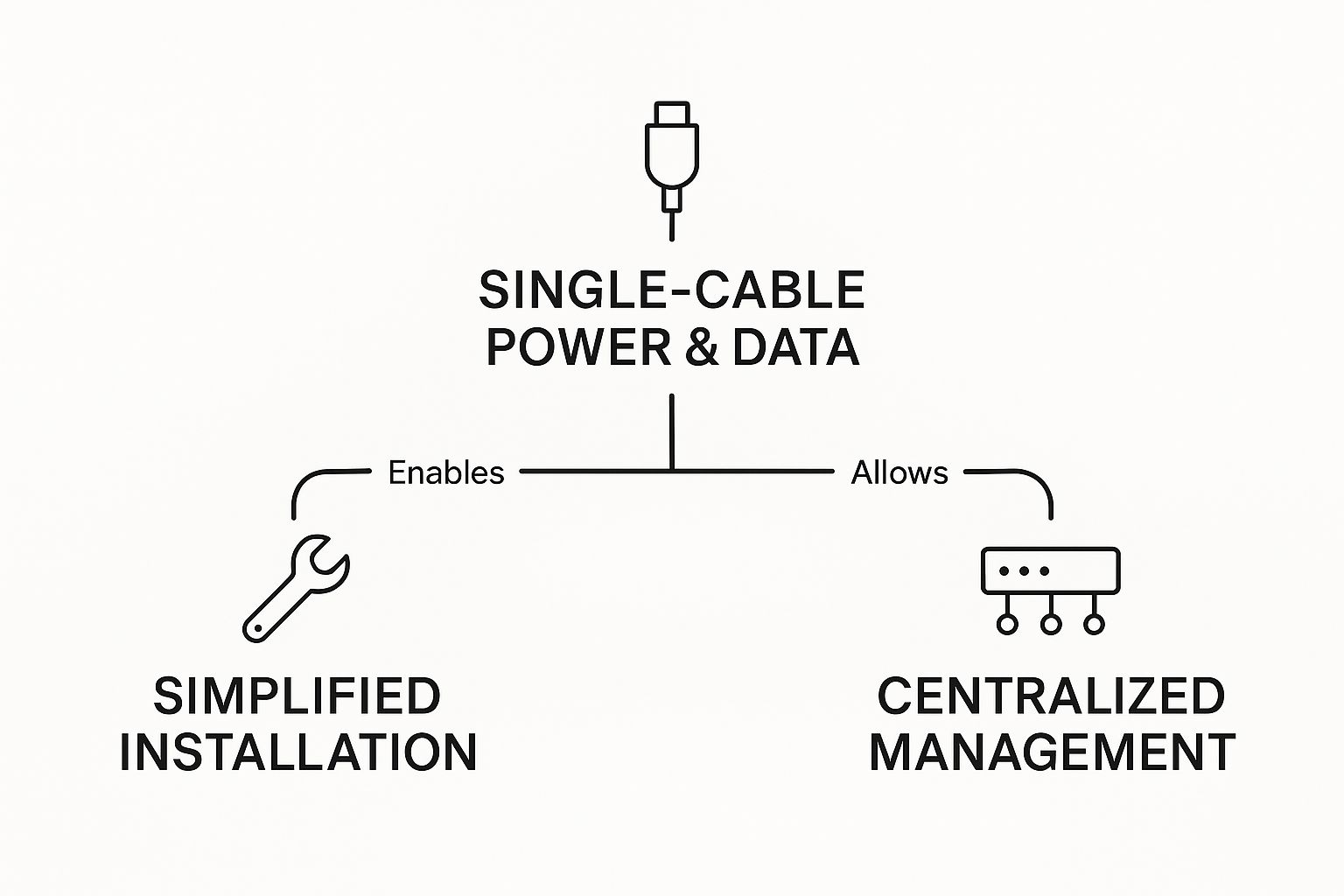

This graphic really helps visualize how the different benefits all stem from the system's core design.

You can see how the single-cable approach leads directly to simpler installation and centralized control over the whole system.

The Heart: The PoE Switch

When you're dealing with a larger system or your NVR just doesn't have enough ports for all your cameras, a PoE switch becomes the heart of the operation. This device is your central hub for distributing both power and data, pumping life into your entire camera network.

A PoE switch is engineered to safely push electrical power over an Ethernet cable right alongside the data. It’s smart, too—it automatically detects if a connected device actually needs power and only sends it if it does.

Think of it as a smart power strip for your network. You plug all your cameras into the switch, and then just one cable connects that switch to your NVR and router. This approach centralizes your power source, making it much easier to manage and protect with a backup like an uninterruptible power supply (UPS), keeping your cameras online even if the power goes out.

The Nerves: The Ethernet Cables

Finally, you have the Ethernet cables—the nervous system that connects everything. These aren't just any old wires. They are the high-speed pathways that carry both the digital video from your cameras and the low-voltage power from your NVR or switch.

Cable quality really does matter here. You should use Cat5e at a minimum, but Cat6 is definitely the better choice for a modern poe camera system. Cat6 cables offer better shielding and thicker copper wiring, which cuts down on interference and ensures more reliable power delivery, especially when you're pushing the maximum distance of 100 meters (328 feet).

Put these four components together, and you have a cohesive, powerful, and remarkably effective security ecosystem.

Why Choose a PoE Camera System?

The idea of running just one cable for each camera is definitely appealing, but the real reasons to go with a PoE camera system go much deeper than that. Choosing PoE isn't just about convenience; it's a smart decision that affects everything from your budget to the day-to-day reliability of your security. Let's dig into the practical benefits that have made this technology the gold standard for any serious surveillance setup.

These advantages are exactly why the market is buzzing. The global Power over Ethernet camera market was valued at around $5 billion in 2023 and is expected to grow at an impressive 15% each year through 2033. This boom is happening because more and more businesses are realizing they need the kind of flexible, scalable security that IP-based systems offer. You can see more data on the PoE monitoring camera market's expansion to get a feel for the trend.

Unmatched Installation Flexibility

One of the biggest wins with a PoE camera system is the sheer freedom you get during installation. Since that single Ethernet cable handles both power and data, you're no longer handcuffed to the nearest electrical outlet. This completely changes how you can design your security layout.

Think about it. You need a camera on a tall pole overlooking a parking lot, or maybe tucked into the far corner of a warehouse. With an old-school system, you'd have to call in an electrician to run a new power line—a costly and time-consuming headache. A PoE system cuts out that entire step, giving you the freedom to put your cameras exactly where they'll be most effective.

Significant Cost-Effectiveness

While the upfront cost for cameras and recorders might look similar to other systems, a PoE camera system saves you a significant amount of money in the long run. The most immediate savings come from the installation itself. By eliminating the need for an electrician to wire every single camera location, you slash labor costs right off the bat.

This simpler approach also means you're buying and managing less gear. No more juggling a bunch of power adapters, bulky extension cords, and power strips. This not only reduces clutter but also makes the entire security infrastructure more affordable to set up and maintain over its lifetime.

PoE technology doesn't just simplify wiring; it fundamentally changes the cost equation of deploying a professional-grade security system, making it accessible for a wider range of applications.

Superior System Reliability

When it comes to security, you can't afford "mostly reliable." A hardwired connection will always be more stable than a wireless one, and that's the core strength of a PoE camera system. It gives you a direct, physical link for both data and power, making it immune to the common frustrations of Wi-Fi.

Here's where that rock-solid stability really shines:

No Wi-Fi Interference: Your cameras won't suddenly drop their connection because the microwave is running or your neighbor set up a new router.
Consistent Signal Strength: You never have to worry about Wi-Fi dead zones or weak signals degrading your video quality. The connection remains strong for up to 100 meters (328 feet) per cable run.
Centralized Power: All your cameras draw power from a central PoE switch or NVR. You can plug this single source into an uninterruptible power supply (UPS) and keep your entire security system online, even if the power goes out.

This bulletproof connection ensures your cameras are always recording without gaps or glitches—an absolute must for any serious security setup.

Effortless Scalability for Future Growth

Your security needs today might not be your security needs tomorrow. Maybe you'll expand your building, open a new location, or simply decide to cover a few more blind spots. A PoE camera system is designed to grow with you.

Adding a new camera is as straightforward as running a new Ethernet cable from your PoE switch to the new spot. There’s no need to rethink your power grid or bring in an electrician again. This plug-and-play scalability makes a PoE system a smart, future-proof investment that easily adapts as your home or business evolves.

Here is the rewritten section, designed to sound like an experienced human expert.

Modern Features That Define PoE Cameras

Let's be honest, the grainy, ambiguous footage from old security cameras wasn't particularly helpful. Today’s PoE cameras are a world apart. They aren't just simple recording devices anymore; they're intelligent security tools packed with impressive technology, designed to make your security more effective and a lot less of a headache to manage.

These advancements change the game, turning a poe camera system from a passive observer into an active guardian. Instead of you having to sift through hours of footage after an incident, these cameras analyze what’s happening in real-time. This helps you respond faster and with more confidence. Let's dig into the key features that deliver this smarter, more powerful approach to surveillance.

Seeing in High Definition and Beyond

The most immediate upgrade you'll notice in modern PoE cameras is the resolution. Standard HD used to be the gold standard, but now cameras push far beyond that, with 4K Ultra HD becoming the new normal. This jump in pixel density isn't just about a prettier picture; it has a critical, practical benefit.

With 4K, you can digitally zoom in on recorded footage without the image degrading into a pixelated mess. This means you can finally make out those crucial details. Think about it:

The numbers on a license plate in your driveway.
The face of an individual on your property.
Specific text on a package left at your door.

This level of detail can mean the difference between identifying a person involved in an incident and having no leads at all.

Piercing the Darkness with Infrared Night Vision

Security threats don't clock out when the sun goes down, and neither should your cameras. Modern PoE cameras come standard with powerful infrared (IR) night vision, allowing them to see in what appears to us as complete darkness. The camera essentially floods the area with infrared light—invisible to our eyes, but perfectly clear to the camera's sensor.

The result is a crisp black-and-white image, turning pitch-black conditions into a clearly visible scene. For a business owner, this means your warehouse perimeter is watched over all night. For a homeowner, it’s the peace of mind that comes from knowing your backyard is secure long after you’ve gone to bed.

Wide Dynamic Range (WDR) is like having the camera automatically adjust its sunglasses. It intelligently brightens the dark parts of a scene while dimming the bright parts, creating a single, perfectly balanced image where every detail is visible.

This tech is a lifesaver for areas with tricky lighting, like a storefront with a huge glass window or a loading dock that cycles between bright sun and deep shadows. Without WDR, you'd be stuck with either a blown-out, overexposed exterior or a completely dark interior.

The Power of On-Board Artificial Intelligence

Maybe the most impressive leap forward is the integration of on-board Artificial Intelligence (AI). Anyone who’s used an older camera system remembers the frustration of constant false alarms—every time a car's headlights swept by or a branch swayed in the wind, your phone would buzz. Today's AI-powered cameras are much smarter than that.

Using sophisticated algorithms right on the device, these cameras can tell the difference between people, vehicles, and other motion. This lets you create alerts that actually matter:

Person Detection: Get a notification only when a person enters a specific zone.
Vehicle Detection: Know when a car pulls into your driveway, but ignore the neighbor's cat.

This intelligent filtering slashes the number of false alarms, so when you do get a notification, you know it's something worth checking. This focus on relevant events makes a modern poe camera system an incredibly efficient security partner. With many systems now featuring 5-megapixel (MP) super HD resolution as a baseline, there's plenty of detail for these smart analytics to work with. You can discover more about the technical capabilities of modern PoE systems and see how they support these powerful features.

How to Plan Your PoE Camera Installation

A successful PoE camera system doesn’t just happen. It's not born from a power drill and a box of cables; it’s the result of a thoughtful, well-laid-out plan. Honestly, this planning phase is the single most important step you can take. It’s what saves you from the headaches of blind spots, inadequate power, and grainy video down the road.

This is what really separates a professional-grade setup from an amateur one. Whether you're mapping out four cameras for your home or designing a system for a multi-building business complex, taking the time to design the layout will pay dividends in effectiveness and a much, much smoother installation.

Let's walk through how to create that solid blueprint.

Mapping Your Camera Placements

Before you even think about touching a cable, grab a pen and a blueprint of your property—or even just a hand-drawn sketch. The first thing you need to do is walk the site and think like an intruder. Where are the weak spots? The goal here is to create overlapping fields of view that give you total coverage of the most critical areas, leaving zero blind spots.

Think about placing cameras in these key locations:

Entry and Exit Points: Every single door, ground-floor window, and gate needs to be covered.
High-Traffic Areas: Think hallways, reception desks, and the main pathways people use.
Valuable Assets: Keep a dedicated eye on things like inventory stock, cash registers, or parked company vehicles.
Perimeter and Approach: You want to see people before they get to the building. Watch driveways, walkways, and fence lines.

As you mark these spots, consider the camera's height and angle. Mounting a camera high up helps prevent tampering, but if it's too high, you lose the ability to clearly identify faces. I’ve found the sweet spot is usually 8-10 feet off the ground, angled slightly downward. This gives you a great view of both faces and the surrounding activity.

A common mistake is just slapping a camera over the front door. Real security comes from monitoring the paths people take to get there, giving you the full story of any event, not just the final moment.

Calculating Your Power Budget

Next up is something that trips a lot of people up: the total power budget. Every single device you plug into your PoE network, especially cameras, draws power, measured in watts. A simple little dome camera might only sip 4-5 watts. But a high-performance PTZ (Pan-Tilt-Zoom) camera, especially one with a built-in heater for cold weather, can easily pull 25 watts or more.

You absolutely must make sure your PoE switch or NVR has enough juice to power everything at once. If it doesn't, cameras will start dropping offline randomly.

Here’s how you get it right:

Check Camera Specs: Dig into the datasheet for every camera model you're using and find its maximum power consumption.
Add It All Up: Sum the wattage for all your cameras to get a baseline number.
Add a Buffer: This is crucial. Always add a 20-25% buffer on top of your total. This safety margin accounts for power loss over long cable runs and, just as importantly, gives you room to add another camera or two in the future without needing a new switch.

So, if you have ten cameras that each need 8 watts, your total draw is 80 watts. Add a 25% buffer (20 watts), and you know you need a PoE switch with a power budget of at least 100 watts. This simple math prevents one of the most common and frustrating installation problems.

Selecting the Right Ethernet Cable

The final piece of your plan is choosing the right Ethernet cable. This is the literal backbone of your system, and this is not the place to cut corners. Your main choices will be between Cat5e and Cat6 cable.

Cable Type	Key Characteristics	Best For
Cat5e	The bare minimum for PoE. It’s affordable and handles gigabit speeds and standard PoE power levels just fine.	Smaller, budget-conscious setups with shorter cable runs and cameras that don't draw much power.
Cat6	Has thicker copper wires and better internal twisting, which means less signal interference and safer power delivery.	Future-proofing, runs approaching the 100m/328ft limit, and systems using power-hungry PTZ cameras.

While Cat5e will technically work for many systems, Cat6 is the recommended choice for any new installation today. The cost difference is minimal, but the performance boost is significant. You get more reliable power delivery, less heat buildup in bundled cables, and better protection from signal noise. It just gives your system a more stable foundation.

And one last tip: for any runs that go outside or underground, make sure you use direct-burial rated cable. It’s designed to stand up to moisture and sunlight. With a solid plan covering placement, power, and cabling, you're set up for success.

Your PoE Camera System Questions, Answered

Thinking about a PoE camera system is a great first step, but it’s the practical, real-world questions that really matter. We get these all the time from people just like you, so let's clear up some of the most common ones to help you feel confident about your setup.

What’s the Furthest I Can Run a PoE Camera Cable?

This is probably the most frequent question we hear, and for good reason! The official industry standard for a single Ethernet cable run in a PoE setup is 100 meters (or 328 feet). This isn't a random number; it's the maximum distance for maintaining a reliable data signal over copper Ethernet cable.

For most homes and small businesses, 328 feet is plenty of cable to reach any corner of the property. But what if you need to go further?

You're not stuck. A simple device called a PoE extender can be a lifesaver. You just plug it in line with your cable, and it acts like a little repeater, boosting both the power and the data signal for another 100 meters. For really long runs, like across a large commercial property or farm, we'd typically look at using fiber optic cable with media converters, which is a much more robust solution for extreme distances.

Can I Just Use Any Old Ethernet Cable?

While you technically can, this is one area where you absolutely shouldn't cut corners. The quality of your cable is critical. For any new PoE camera system installation, we strongly recommend using a minimum of Cat5e, but Cat6 cabling is the smarter choice.

Here's what that upgrade gets you:

Better Power Delivery: Cat6 cables have thicker copper wires and a tighter twist. This reduces electrical resistance, meaning less power is lost as heat. Your cameras, especially power-hungry ones, get the stable power they need to perform reliably.
A Cleaner Signal: The improved design of Cat6 also provides much better protection against interference (what we call "crosstalk"). This results in a cleaner, more stable video feed without glitches.

And if a camera is going outside, you must use outdoor-rated or direct-burial Ethernet cable. It’s wrapped in a tough, weatherproof jacket designed to stand up to moisture, UV rays, and temperature swings. Using indoor cable outside is just asking for it to fail.

Think of your Ethernet cable as the foundation of your security system. Building on a weak foundation with subpar cabling is a surefire way to encounter frustrating performance issues and random camera dropouts down the road.

Do I Need a Special Router for PoE Cameras?

This is a common point of confusion, but the answer is simple: No, you don’t. Your standard internet router from your service provider is perfectly fine.

The magic happens in a different device. The power for your cameras comes from either a PoE switch or a PoE-enabled Network Video Recorder (NVR). Your cameras plug directly into the special PoE ports on this device. The switch or NVR then connects to your regular router with a single cable, which is how the system gets online for remote viewing. Your router's job is just to handle the internet connection, not to power the cameras.

Are PoE Camera Systems Really More Secure Than Wi-Fi Cameras?

From a security and reliability perspective, yes, absolutely. A hard-wired PoE camera system has some fundamental advantages over its wireless cousins.

For starters, it's immune to Wi-Fi signal interference. A wired connection won't suddenly drop because your neighbor fired up a new router or because someone is using a cheap Wi-Fi jammer. The physical connection is just inherently more stable.

Even more importantly, a PoE system offers much better network security. When your cameras are plugged directly into the dedicated ports of an NVR, they often operate on their own private, isolated network. This creates a natural firewall, making it incredibly difficult for hackers on the internet to even see, let alone attack, your cameras. Wi-Fi cameras, by their very nature, have to broadcast their presence, creating a potential entry point if not perfectly secured with strong passwords and modern encryption.
