Power Supplies for CCTV Cameras: Your Complete Guide

Understanding Your CCTV Power Requirements

Imagine your CCTV system as a small city. Each camera is a building with its own energy needs. Just like a small apartment uses less electricity than a sprawling shopping mall, a basic bullet camera might sip just 4 watts, while a sophisticated AI-powered dome camera, complete with heaters and infrared, could gulp down over 40 watts. Understanding this varying thirst for power is the first step to building a reliable surveillance system.

Accurately sizing your power supply for each camera is crucial. Think of it like choosing the right charger for your devices. A simple bullet camera might only need a small power adapter, similar to your phone charger. But a more complex PTZ (Pan-Tilt-Zoom) camera, with its motorized parts and extra features, will demand a much heftier power source.

And don't forget about night vision! Infrared illuminators, which allow your cameras to see in the dark, can significantly increase power consumption. It’s like flipping on a bunch of extra lights in your house. A camera drawing 10 watts during the day might suddenly need 20 watts at night. Overlooking this detail could leave your night-time surveillance in the dark.

Furthermore, technology itself is changing the power game. Advanced features like facial recognition and cloud video analytics require a constant and stable flow of electricity. The booming smart home security market, projected to be worth over USD 4.3 billion by 2034 in the U.S., underscores this growing need for robust power solutions. Learn more about this growing market here.

Ignoring these power nuances can lead to all sorts of problems – system instability, camera malfunctions, and ultimately, a security system that doesn't do its job. By understanding the individual power requirements of each component, you can avoid these headaches and build a reliable CCTV system that’s always watching.

Choosing the Right Power Supply Type

Picking the right power supply for your CCTV system is a bit like choosing the right tires for your car. You wouldn't put slick racing tires on a pickup truck headed off-road, would you? The same principle applies here. Different situations call for different power solutions. Let's break down the options, starting with the simplest.

AC Adapters: The Simple Solution

AC adapters are the most basic type of CCTV power supply. They're essentially like your phone charger – they plug into a standard wall outlet and convert AC power to the 12V DC power that most cameras require. For a small, single-camera setup near an outlet, they're cheap and easy to install.

However, distance is their Achilles' heel. Running long cables from the outlet to the camera can cause voltage drop. Think of it like water pressure decreasing as you get further from the pump. Lower voltage means a weaker signal, which can impact your camera's performance. This makes understanding cable gauge and distance limitations critical.

PoE (Power over Ethernet): The One-Cable Wonder

PoE, or Power over Ethernet, is a more elegant solution. Imagine a single cable that provides both data connectivity and power to your camera – that's PoE. It's like a highway with lanes for both cars and electricity! This eliminates the need for separate power cables, streamlining installation and reducing cable clutter.

PoE is especially handy for larger installations or when cameras are mounted in hard-to-reach spots far from power outlets. However, it does require specialized equipment like PoE switches or injectors, which adds to the initial cost.

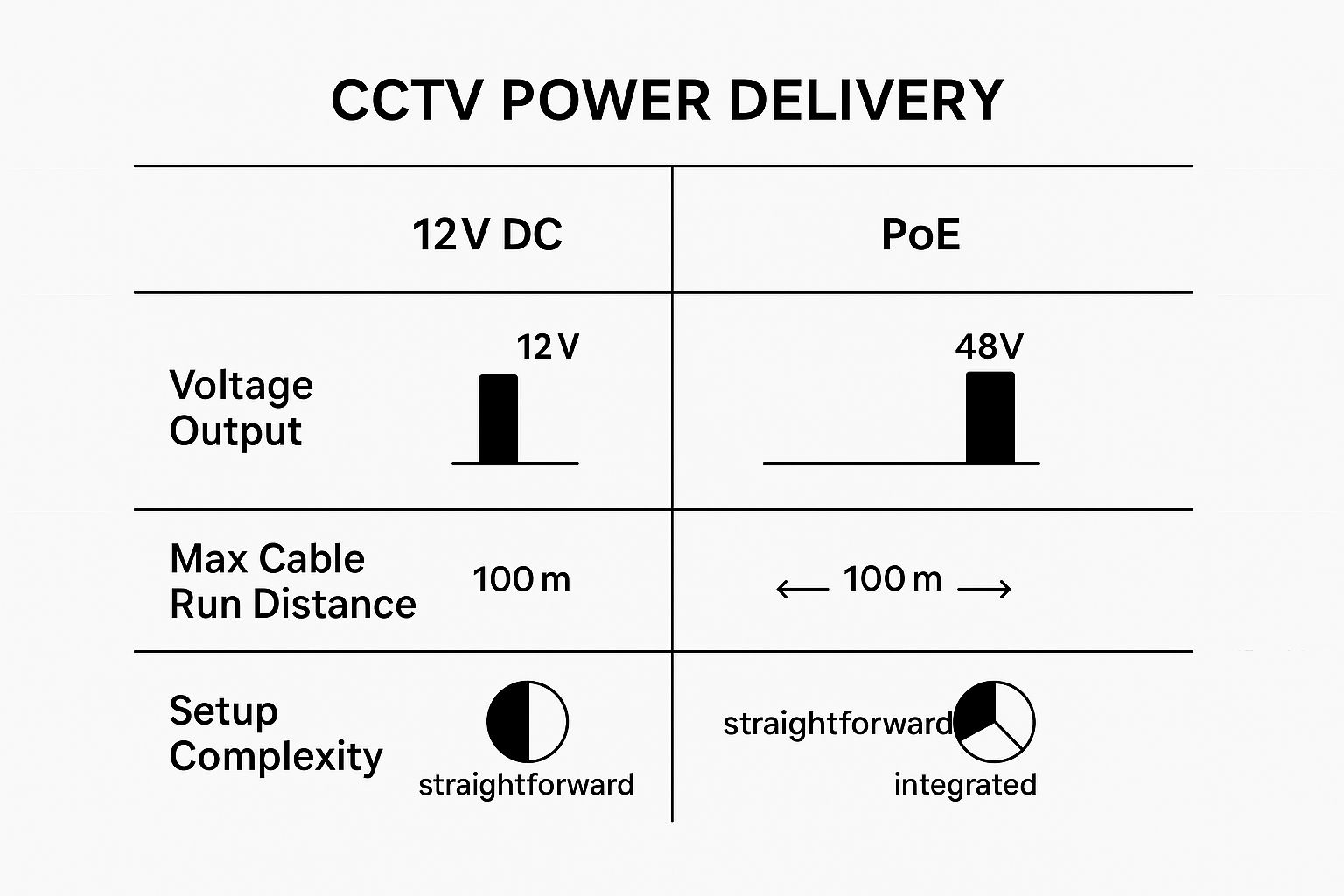

The infographic below visually compares 12V DC and PoE, highlighting their differences in voltage output, maximum cable run distance, and setup complexity.

As you can see, while both 12V DC and PoE can support cable runs up to 100m, PoE’s integrated power and data transmission greatly simplifies setup. This can save significant installation time and expense, particularly for larger, more complex systems.

Solar and Battery Backup: The Power Outage Protector

Think of solar and battery backup solutions as an insurance policy for your surveillance system. What happens if the power goes out during a crucial security event? A solar-powered system with battery backup keeps your cameras running, ensuring continuous recording, even when the grid fails.

While the upfront cost is higher, this solution is invaluable for remote locations or areas with unreliable power. It offers peace of mind knowing your security system won't go down when you need it most.

Matching the Right Solution to Your Needs

To help you choose the best option, let’s compare the different power supply types side-by-side. The table below summarizes the key features, benefits, and drawbacks of each:

CCTV Power Supply Types Comparison

Power Supply Type	Installation Difficulty	Cost Range	Best For	Pros	Cons
AC Adapter	Easy	Low	Small systems, cameras near outlets	Simple, cost-effective	Limited cable run, voltage drop potential
PoE (Power over Ethernet)	Moderate	Medium	Larger systems, remote cameras	Simplified wiring, single cable	Requires specialized equipment (PoE switch or injector)
Solar/Battery Backup	Complex	High	Remote locations, unreliable power grids	Uninterrupted power, off-grid operation	Higher initial cost, requires specific expertise for installation

As you can see, each power supply type has its own strengths and weaknesses. AC adapters are a budget-friendly choice for simple setups, while PoE excels in larger systems. Solar/Battery backup provides ultimate reliability for mission-critical surveillance.

Choosing the right power supply is a crucial step in building a reliable and effective CCTV system. By understanding the nuances of each option, you can make an informed decision that meets your specific needs and budget.

Sizing Your Power Supply System

Picking the right power supply for your CCTV system is a bit like planning for a dinner party. You need to make sure there’s enough to go around! Let’s explore how to calculate the right size power supply, using some real-world examples.

Sizing for a Simple Home Setup

Imagine a typical home setup with four bullet cameras, each consuming 5 watts. A simple calculation of 4 cameras multiplied by 5 watts equals 20 watts total, seems logical, right? But experienced installers know better. They always include a safety margin of 20% to account for power fluctuations and potential future expansions.

So, 20 watts x 1.20 equals 24 watts. This means you’d need a power supply that can deliver at least 24 watts. However, there’s another important factor: the environment. Features like infrared illuminators can significantly impact power consumption, sometimes even doubling it.

For example, if your cameras use infrared at night, bumping their power draw up to 10 watts each, your nighttime power requirement becomes 40 watts. Adding the 20% safety margin brings you to 48 watts. This highlights the importance of considering both daytime and nighttime power needs.

Handling a Complex Commercial Installation

Let’s step it up a notch and consider a commercial setting with a mix of cameras: two dome cameras at 10 watts each, a PTZ camera at 15 watts, and an AI-powered camera at 20 watts. The initial calculation: 10 + 10 + 15 + 20 = 55 watts. With the 20% safety margin, we arrive at 55 x 1.20 = 66 watts.

In commercial environments, external factors play a more significant role. Cold weather, for instance, can increase power consumption as heaters in outdoor cameras kick in. This can catch even seasoned installers off guard. Let’s say our example system is operating in winter, and the dome cameras now need 15 watts each because their heaters are running. This pushes the total power draw to 70 watts, and with the safety margin, the final requirement becomes 84 watts.

To help visualize power consumption across different camera types and features, let’s take a look at this handy table:

CCTV Camera Power Consumption Guide

Detailed breakdown of power consumption for different camera types and features

Camera Type	Base Power (W)	With IR (W)	With Heater (W)	Peak Consumption (W)
Bullet Camera	5	10	N/A	10
Dome Camera	10	12	15	15
PTZ Camera	15	18	20	20
AI-Powered Camera	20	25	25	25

As you can see, adding features like IR and heaters significantly impacts the power requirements. Remember to always consider peak consumption when sizing your power supply.

The Dangers of Undersizing and Oversizing

Undersizing your CCTV power supply can lead to insufficient voltage, causing cameras to malfunction or even shut down completely, leaving your security vulnerable. Oversizing, on the other hand, while not a safety hazard, is inefficient and leads to unnecessary costs.

By accurately calculating your system’s power needs and including that essential safety margin, you’ll ensure a reliable and efficient surveillance setup. This proactive approach saves you money and avoids headaches down the road.

Professional Installation Strategies

Powering your CCTV system isn't as simple as plugging in a lamp. It's about creating a robust and reliable infrastructure, a foundation for your entire surveillance setup. Think of it like building a house: a shaky foundation compromises everything built on top. This guide will walk you through the key steps for a professional-grade CCTV power supply installation.

Location, Location, Location: Positioning Your Power Supplies

Choosing the right spot for your power supplies is critical. You wouldn't build a house on shifting sand, so avoid placing power supplies in damp, poorly ventilated areas, or spots with extreme temperatures. A dedicated equipment room or a climate-controlled enclosure is ideal. This protects the units from environmental damage and makes maintenance a breeze.

For outdoor installations, weatherproof enclosures are essential. These protect your power supplies from rain, snow, and temperature swings, ensuring long-term reliability and preventing electrical hazards.

Cable Runs and Voltage Drop: The Long and Short of It

Running cables might seem straightforward, but it's where many DIY installations go wrong. Think of cables as the arteries of your system: they need to be strong enough to carry the required power without loss. Voltage drop, a decrease in voltage over distance, is a common issue. It’s like water pressure weakening the further you are from the source.

To combat voltage drop, choose the correct cable gauge. Thicker cables offer less resistance, ensuring power flows efficiently over longer distances. For long cable runs, consider using higher voltage power supplies (like 24V AC) to offset potential voltage loss. Always check cable specifications and use a voltage drop calculator to ensure you select the right cable.

Grounding: More Than Just a Safety Measure

Proper grounding is often overlooked, but it's crucial for both safety and system stability. Grounding acts like a safety valve, channeling excess electrical energy away from your equipment and preventing damage from power surges. It's not only about preventing shocks; it’s about safeguarding your investment in your CCTV system.

A solid ground connection also minimizes electrical noise – interference that can degrade video quality and destabilize your system. This is especially important in environments with lots of other electrical devices.

Organizing Multiple Power Supplies: Keeping it Tidy

Larger systems with multiple cameras require organized power supplies for easy maintenance. Imagine searching for a single faulty wire in a tangled mess – a true nightmare! Dedicated power distribution boxes centralize power connections, providing a clean and organized setup for managing multiple power supplies and simplifying troubleshooting.

Clearly label each cable to indicate which camera it powers. This might seem tedious now, but it will save you hours down the road when troubleshooting or expanding your system. It's like creating a roadmap for your power infrastructure.

Weatherproofing: Protecting Your Investment

Weatherproofing is paramount for outdoor cameras. Exposed connections are susceptible to corrosion and water damage, leading to system failures and safety hazards. Use weatherproof connectors and sealant to protect all exposed wiring. Think of it like sealing gaps around a window to keep out the elements.

Also, protect your cable runs from physical damage. Use conduit or cable trays to shield cables from rodents, UV exposure, and accidental damage. This adds another layer of protection and prolongs the life of your cabling.

Documentation: Your Future Self Will Thank You

Finally, document everything! Create a detailed diagram of your power supply setup, including cable runs, power supply locations, and camera connections. This documentation will be invaluable for future maintenance, troubleshooting, or system expansion. It’s like an instruction manual for your security system, making future work much easier. This meticulous approach distinguishes a professional installation from an amateur one, ensuring the longevity and reliability of your CCTV system.

Understanding the Global CCTV Power Market

The global demand for CCTV camera power supplies is booming. This reflects a larger change in how we think about security. It’s not a standalone trend; it's directly linked to the growth of the CCTV camera market itself. Understanding this connection is key to grasping how power supply technology is evolving, and making smart choices for your own security setups.

This growing demand isn’t just about more power supplies; it's about better ones. As security concerns rise worldwide, investment in surveillance is going through the roof. This has a knock-on effect, pushing the need for smarter, more efficient, and dependable power solutions.

Think of it like this: the CCTV market is a garden, and the power supply market is the water keeping it alive. A bigger, healthier garden needs more water to flourish.

This market growth is driven by a few interesting factors. The demand for CCTV power supplies is closely tied to the overall growth of the CCTV camera market. In 2024, this market was worth about USD 19.01 billion. Projections show it hitting USD 45.11 billion by 2032, growing at a rate of 11.4% each year from 2025 to 2032. This naturally leads to a need for more power supplies, specifically designed to handle the needs of different CCTV systems. Furthermore, new technologies like IoT and AI in CCTV systems require strong and reliable power to work smoothly. Big markets like North America, Europe, and Asia Pacific are pushing this demand with their heavy investment in security infrastructure. For a deeper dive into these market forces, check out more insights here.

Different parts of the world have unique power situations and handle CCTV power in different ways. For example, areas with frequent blackouts might prioritize battery backups and solar power, while places with stable power grids might focus on efficient PoE (Power over Ethernet) solutions. Understanding these regional differences helps you predict future trends and make flexible choices for your own installations.

This global view is important. It helps you avoid outdated technology and ensures your power supply choices stay relevant and supported for years to come. It’s about making decisions that work with the overall direction of the industry, not just what’s popular right now.

Asia Pacific Innovation in CCTV Power Solutions

The Asia Pacific region offers a glimpse into the future of CCTV camera power. By observing how rapid urbanization and smart city projects are reshaping power needs there, we can draw valuable lessons for the rest of the world. Let's delve into real-world examples from leading markets like China, Japan, and South Korea, where large-scale surveillance systems are pushing the boundaries of power management.

Imagine the power grid of a bustling city. Redundancy and reliability are crucial, right? Similarly, in densely populated areas where thousands of cameras monitor traffic and public safety, efficient power distribution is paramount. This has driven the widespread adoption of PoE (Power over Ethernet) systems, which simplify installation and lower cabling costs. The constant need for surveillance has also spurred innovation in backup power, ensuring continuous operation even during outages.

The Asia Pacific region also faces unique environmental hurdles, from intense typhoons to scorching heat. These conditions demand resilient and weatherproof power supplies. This need has fostered innovation in surge protection, temperature resistance, and even the use of solar power for remote or off-grid setups. These advancements are no longer just regional fixes; they're becoming global benchmarks.

The Asia Pacific region significantly impacts the global demand for CCTV camera power supplies. In 2025, the market size in this region exceeded USD 40.56 billion and is projected to grow at a CAGR of 16.54%. This rapid growth is fueled by the adoption of advanced surveillance technologies in countries like China, Japan, and South Korea. Discover more insights into this growing market. The rising integration of IoT and AI in CCTV systems creates a high demand for specialized power supplies. These must support advanced features like motion detection and night vision. As the region continues to urbanize and embrace smart city initiatives, the need for reliable and efficient power solutions for CCTV systems will only intensify. This underscores the importance of careful power supply design and robust backup systems.

By studying these regional trends, we can understand why certain power supply features are becoming standard worldwide. We can also learn how to future-proof our own CCTV installations by taking cues from markets that are further ahead in terms of deployment size and technical know-how. This proactive approach helps ensure our security systems remain reliable, efficient, and adaptable to upcoming advancements.

Troubleshooting Power Problems Like a Pro

When your CCTV cameras start acting up, power issues are often the first place to look. But don't worry, you don't need to be an electrician to figure things out. Think of it like detective work – each symptom provides a clue. Let's explore some common power-related problems and how to solve them.

Mysterious Reboots and Night Vision Failures

One common issue is cameras mysteriously rebooting during the day. This can be caused by a power supply that simply isn't up to the task of handling the camera's peak power demands. For instance, a camera might work fine during the day but reboot when the infrared illuminator kicks in at night, drawing more power. It's like trying to run a power-hungry kitchen appliance on a weak circuit – it just can't keep up.

Another frustrating scenario is night vision failure. Your cameras work perfectly during the day, but when night falls, the night vision goes kaput. Again, the power supply might be the culprit. Those infrared LEDs need extra juice, and an undersized power supply might not be able to deliver. It's like trying to climb a steep hill in a car with a sputtering engine – it struggles under the extra load.

Voltage Drop and Poor Connections: The Silent Saboteurs

Voltage drop is another common issue. This is simply a decrease in voltage over long cable runs. Imagine water flowing through a long, narrow hose – the pressure decreases the farther it travels. Similarly, voltage decreases as it travels along a cable, impacting camera performance. This can lead to blurry images, intermittent connection problems, or even total camera failure.

Poor connections, such as loose wires or corroded terminals, can also cause power headaches. Think of these like weak links in a chain. They restrict the flow of power, mimicking the symptoms of a weak power supply. Even a slightly loose connection can lead to flickering images or random shutdowns.

Using a Multimeter: Your Diagnostic Tool

A multimeter is an essential tool for diagnosing power issues. It's like a doctor's stethoscope for your electrical system. It measures voltage, current, and resistance, helping you pinpoint the source of the problem. By checking the voltage at the camera end, you can see if there’s a significant voltage drop. This will help you identify faulty cables or inadequate power supplies.

Real-World Troubleshooting Scenarios

Let's look at a real-world example. Imagine a system where the cameras worked fine for months, then suddenly started acting up. A failing power supply could be the cause, especially if it's been working near its maximum capacity. Like an overworked engine, it eventually gives out.

Another scenario might involve cameras that only have issues during the winter. This could point to a problem with the camera's heater, drawing more power than the system can handle. It’s like plugging in another space heater to an already overloaded circuit.

Systematic Diagnostic Approach

By understanding common power problems and using a multimeter, you can develop a systematic approach to troubleshooting. Start by checking for loose connections and verifying voltage levels. If the voltage is low, trace the cable back to the power supply, looking for breaks or damage.

This process is all about elimination. By systematically ruling out potential issues, you can quickly identify the root cause. Is the problem the power supply, the cabling, or the camera itself? This detective work can prevent minor problems from becoming major system failures. It's like fixing a small leak before it floods your basement. Proactive troubleshooting keeps your CCTV power supplies running smoothly, ensuring the reliability and performance of your surveillance system.
