DIY Security Camera System: Your Complete Setup Guide

Mapping Your Property Like a Security Pro

Before you even dream of adding a DIY security camera system to your shopping cart, we need to talk strategy. I’ve seen it happen time and again: someone buys a big box of cameras, gets them all set up, and then discovers huge blind spots or realizes a camera is pointing at something completely useless. The real trick to getting it right is to stop thinking like a homeowner and start thinking like a burglar. This simple shift in perspective is the most important part of your entire project.

Conducting Your Own Threat Assessment

First thing's first: grab a notepad and take a walk around your property. You'll want to do this twice—once in broad daylight and again after dark. As you walk, ask yourself a simple question: "If I wanted to break in, how would I do it?" Pinpoint the obvious entryways like the front door, back door, and garage. But don't stop there. Pay extra attention to the spots that feel hidden or overlooked. Is there a side window covered by overgrown bushes? What about that dark, unlit corner near the basement door? These are the exact spots a potential intruder would look for.

Make sure to note these key surveillance areas:

• Entry and Exit Points: This includes every single door that leads into your house, even the one from the garage.

• Ground-Floor Windows: Pay special attention to windows that aren't easily seen from the street or a neighbor's house.

• Driveways and Walkways: These are perfect for capturing footage of anyone or any vehicle approaching your home.

• Key Outdoor Areas: Think about sheds, detached garages, or gates—anywhere you might store valuable equipment.

Once you're done, draw a rough sketch of your property and mark all these vulnerable spots. This simple map is now your blueprint for a smart camera layout, making sure you cover what actually matters.

Prioritizing Your Coverage Zones

With your map of weak points in hand, it's time to prioritize. Let's be realistic; not every corner of your yard carries the same level of risk. The key to building a system that’s both effective and budget-friendly is to distinguish between "critical" zones and "nice-to-monitor" zones. Your main goal should be creating overlapping fields of view in your most high-risk areas. For instance, a camera positioned to watch your driveway should, if possible, also cover a portion of your front porch.

This kind of careful planning is becoming more and more common. Projections show that by 2025, over 13 million U.S. households will install new home alarm systems, with a huge chunk of those being DIY setups. This isn't just a fleeting trend; it shows a real shift towards personalized, accessible security. You can find more details on these home security industry trends to see how many people are taking charge of their home safety.

By taking a little extra time to map out your property, you're not just setting up cameras—you're building a smart deterrent. This strategic approach turns your DIY security camera system from a simple collection of gadgets into a genuinely powerful security tool.

Choosing Cameras That Actually Work for Your Situation

Walking down the camera aisle or scrolling through endless product pages online can feel overwhelming. You'll see terms like "military-grade" and "professional-quality" thrown around, but honestly, most of that is just marketing noise. The best camera for your DIY security camera system isn't the one with the flashiest specs; it's the one that actually fits your home and your needs. Let's cut through the hype and figure out what really matters.

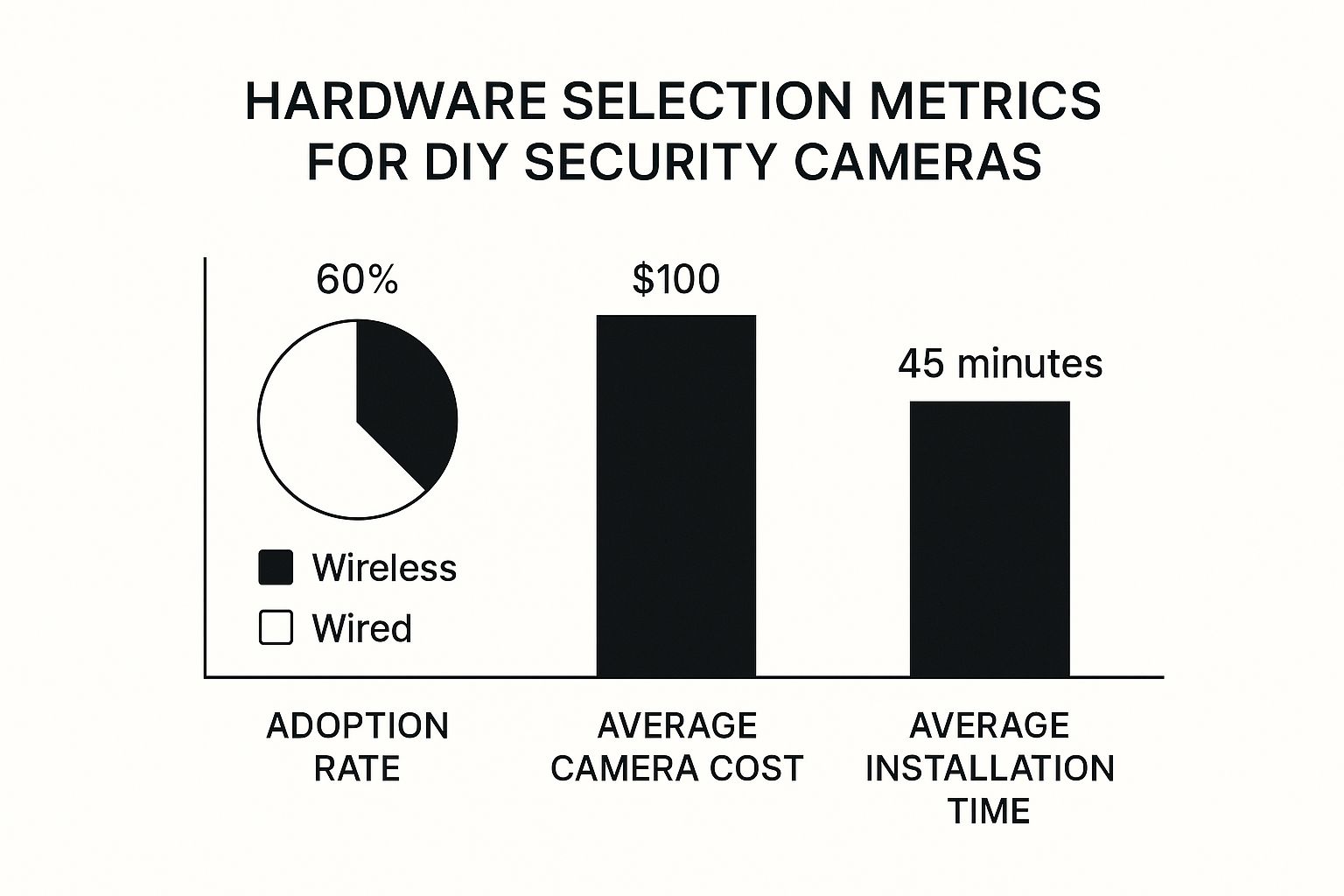

This infographic gives a great overview of what other homeowners are choosing, breaking down adoption rates, costs, and how long setup typically takes.

As you can see, wireless cameras are super popular because they're easier to install. Still, a lot of people opt for wired systems because they're known for being rock-solid reliable. The path you choose will have a direct impact on your budget and how much time you'll spend on the setup.

Wired vs. Wireless: The Real-World Trade-Offs

Your first big decision is whether to go with a wired or wireless system. A wired setup, which usually uses Power over Ethernet (PoE) technology, gives you an incredibly stable connection and a constant power supply. You'll never have to worry about a weak Wi-Fi signal dropping your feed at a crucial moment or climbing a ladder to swap out batteries. The catch? Installation is a bigger project, as it involves running Ethernet cables through your walls and ceilings. It’s a fantastic option if you're building a new house or in the middle of a major renovation.

Wireless cameras, on the other hand, offer amazing flexibility. You can often get one up and running just by mounting it and connecting it to your Wi-Fi. Many are battery-powered, which makes them perfect for tricky spots where running a power cord would be a nightmare. The main downsides are their dependence on your Wi-Fi signal and battery life. For instance, a camera at the far end of your yard might have a spotty connection. While some newer models come with solar panels to keep the battery topped off, you're still relying on a strong wireless connection to keep them online.

To help you visualize the options, here's a quick comparison of the different camera types you'll encounter.

DIY Security Camera Types Comparison

Comprehensive comparison of different camera types, installation requirements, and cost considerations

Camera Type	Installation Difficulty	Power Source	Video Quality	Price Range	Best Use Case
Wired PoE Bullet/Dome	High (Requires drilling, running cables)	Ethernet Cable (PoE)	Excellent (Up to 8K)	$50 - $300+	Permanent, high-traffic areas (driveways, front doors)
Wireless (Wi-Fi)	Low (Mounting, app setup)	AC Outlet / USB	Good to Excellent (1080p - 4K)	$40 - $250	Flexible placement indoors or outdoors near a power source
Wire-Free (Battery)	Very Low (Mounting only)	Rechargeable Battery	Good (1080p - 2K)	$70 - $300	Areas without easy power access (sheds, fences, trees)
PTZ (Pan-Tilt-Zoom)	Medium to High	PoE or AC Outlet	Good to Excellent (2K - 4K)	$150 - $500+	Large areas requiring active monitoring (backyards, parking lots)

This table shows that while a wired PoE camera is more work to install, it offers top-tier quality and reliability. In contrast, a wire-free camera is incredibly easy to set up but comes with the trade-off of managing batteries and potentially lower resolution.

Decoding Camera Features That Matter

Once you've settled on wired or wireless, it's time to dig into the specific features. Here’s what you should actually focus on:

• Resolution: Don't get fixated on "4K." A camera with 2K (or 4MP) resolution is often the sweet spot. It delivers clear, detailed video without creating huge files that will slow down your network and eat up all your storage space.

• Field of View: A wider field of view lets you cover more ground with a single camera. For general outdoor monitoring, aim for a camera with at least a 130-degree viewing angle.

• Night Vision: You'll generally find two types: infrared (IR) and color night vision. IR gives you standard black-and-white video in the dark. More advanced cameras use small amounts of ambient light to capture video in full color, which can be a game-changer for identifying details like the color of a car or a person's clothing.

• Weather Resistance: For any camera you plan to mount outside, you need to check its IP rating. An IP65 rating is perfectly fine for most climates, as it protects against dust and rain. If you live somewhere with harsh winters or heavy storms, it's worth looking for a camera rated at IP66 or IP67 for extra durability.

Building a Network That Won't Let You Down

There’s nothing more deflating than setting up your new DIY security camera system, only to see "camera offline" pop up in your app. The unsung hero of any good security setup is your home network, but it's often the last thing people think about. We tend to assume our trusty Wi-Fi router can handle a few more devices, but security cameras are surprisingly hungry for data, especially when streaming and recording in high definition. A single 4K camera can chew up a serious amount of your upload bandwidth, and a whole system can easily bring a standard network to its knees.

This oversight is the root cause of many frustrations, like choppy live video, recordings that are missing crucial moments, and cameras that constantly disconnect. The good news is you can usually fix these issues without having to rip out your entire network and start over. Let’s look at a few practical ways to beef up your setup.

Strengthening Your Wi-Fi Signal

For a pretty standard three-camera setup recording at 1080p, you should plan on having at least 5-10 Mbps of upload speed available just for the cameras. It’s important to remember that internet plans advertise download speeds, but it's the upload speed that your cameras use to send video to the cloud or your phone, and that number is often much lower.

If you have an outdoor camera at the far corner of your yard that keeps dropping out, the problem might be more about signal strength than pure bandwidth. An easy first step is to move your router to a more central spot in your house. You’d be surprised what a difference just moving it out from behind a bookshelf or TV can make.

If that doesn’t cut it, here are a couple of other options:

• Wi-Fi Extenders: These are simple, budget-friendly gadgets that pick up your Wi-Fi signal and rebroadcast it. They work best for targeting one or two specific dead zones.

• Mesh Wi-Fi Systems: If you have a larger home or a tricky layout with things like brick walls, a mesh system is an excellent upgrade. It uses several "nodes" placed around your house to create one large, seamless Wi-Fi network, giving you strong coverage everywhere. This is a very dependable way to support a robust DIY security camera system.

Hardwiring for Ultimate Reliability

When you absolutely cannot afford to have a camera drop its connection—like the one watching your front door or driveway—nothing beats a wired connection. If your cameras support PoE (Power over Ethernet), you can run a single Ethernet cable to each one. This cable delivers both a super-stable data connection and all the power the camera needs.

Yes, it takes more work to run the cables through walls or attics, but it completely gets rid of any Wi-Fi headaches. For your most critical cameras, the peace of mind that comes with a hardwired connection is well worth the effort. By building on a strong network foundation, you can be confident your security system will be online and ready when it matters most.

Installation Techniques That Save Time and Headaches

With your cameras and network gear laid out, it's time to get your hands dirty with the installation. This is where a little forethought and the right tools can be the difference between a slick, professional-looking setup and a mess of dangling wires. Don't worry, you don't need a contractor's license for this—the trick is to work smarter, not harder.

Mounting Cameras on Different Surfaces

The wall you're drilling into will tell you exactly which tools you need. A simple wood screw is perfect for a wooden eave, but tackling brick or stucco is a different ballgame.

• Wood or Vinyl Siding: This is the easiest surface you'll encounter. A standard drill and the screws included with your camera are typically all you need. If you're mounting on vinyl, consider using special siding clips or placing a small wooden block behind the siding to prevent it from cracking or warping under pressure.

• Brick or Stucco: You'll definitely want a hammer drill fitted with a masonry bit to make a clean pilot hole for your screws. It's essential to use plastic anchors to give the screws something solid to bite into. Trust me, trying to force a screw directly into brick will only end in a wobbly camera and a lot of frustration.

• Metal: For metal surfaces like aluminum siding, a quality set of cobalt drill bits is your best friend. They'll cut through the metal cleanly without overheating. Always start with a smaller pilot hole before widening it to the final size.

No matter the surface, always apply a small ring of silicone caulk around the base of the camera mount and over the screw heads. This is a cheap but critical step for weather-sealing the entire setup. It stops water from sneaking into your walls, which can cause serious damage over time. A properly sealed mount will keep your system running through rain, snow, and humidity for years.

Safety and Cable Management

When you’re perched on a ladder, safety comes first. Make sure your ladder is on solid, level ground, and if you can, have a friend spot you. Before you drill any permanent holes, do a quick "live test." Just hold the camera in its intended spot and check the live feed on your phone. This simple check prevents the agony of realizing the view is blocked after you've already mounted it.

A clean installation means hiding your wires. You can tuck them along siding seams, run them under the soffits, or use cable raceways that you can paint to match your house. To keep everything neat and protected from the elements, use UV-resistant clips to secure the cables. Thinking ahead about how you'll access the camera for cleaning or adjustments will save you a massive headache down the road.

Smart Integration That Actually Makes Sense

A truly useful DIY security camera system does more than just sit there and record. It should work with your other smart devices to create a security setup that's actually, well, smart. The goal isn't to overcomplicate things; it's to build connections that make your home safer in a real, practical way. This move toward integrated, user-built systems is a huge reason the DIY home security market is taking off, letting homeowners create security that fits their life, not the other way around. You can learn more about how consumers are building their own security setups in this piece on the future of personalized home protection.

Taming the Flood of Notifications

If you've ever had a security camera, you probably know the pain of "alert fatigue"—your phone buzzes so often that you just start tuning it out. The trick to fixing this is to use motion detection zones. This feature is a game-changer, letting you draw virtual boxes inside your camera's field of view to tell it which areas matter and which it should ignore.

For instance, you can highlight your walkway but exclude the public sidewalk or the busy street beyond your lawn. This stops every passing car or dog walker from triggering a notification. You can also block out areas where tree branches sway in the wind or where your kids and pets are constantly running around. This way, when you do get an alert, you know it’s something worth checking.

Creating Smart, Automated Responses

This is where your system goes from being a simple recording device to an active part of your home's security. By connecting your cameras to other smart gadgets, you can create automated routines that can actually deter an intruder. These aren't just cool party tricks; they're genuinely practical security measures.

Here are a few automations I find incredibly useful:

• Lights On, Camera Action: Imagine a camera detects movement in your driveway after 10 PM. It can instantly trigger your smart porch lights and floodlights to switch on. That sudden burst of light is often all it takes to make a potential thief think twice and move on.

• Lockdown Protocol: When you leave the house and set your system to "Away," you can have a routine that automatically locks your smart front door. No more wondering if you forgot to lock up.

• Voice-Activated Views: This one is great for peace of mind. A simple command like, "Hey Google, show me the backyard camera," can bring the live feed up on your smart display or TV. It’s perfect for quickly checking on a strange noise without having to find your phone and open an app.

These kinds of integrations turn your DIY security camera system from a passive observer into an active guardian. The whole point is to make technology work for you, creating a seamless security experience that gives you real confidence in your home's safety.

Staying Ahead of Security Technology Trends

The world of security technology moves fast. If you're building a DIY security camera system, you want something that won't feel ancient in a couple of years. This doesn't mean you need to chase every shiny new gadget, but understanding where the industry is heading helps you make smarter choices right now. It's about finding that sweet spot between reliable, proven features and forward-thinking tech that adds real value.

This matters more than ever because the smart security market is growing at an incredible pace. In 2024, the global smart home security camera market was valued at around $10.51 billion. Projections show it could skyrocket to nearly $61 billion by 2034. This growth is all thanks to new technology and more people realizing the importance of home security. You can dig into the full smart home security camera market forecast to see just how fast things are changing.

Innovations That Actually Matter for Homeowners

It's easy to get lost in features that sound impressive but don't solve actual problems. Let's cut through the noise and look at the trends that are making a genuine difference in home security today.

• Smarter AI Detection: Remember when motion alerts were a total pain? They’d go off for everything—swaying trees, the neighbor's cat, a plastic bag blowing across the yard. Modern AI is much more intelligent. It can now tell the difference between people, packages, animals, and vehicles. This is a game-changer because it drastically cuts down on false alarms. When you get an alert now, you know it’s likely something you need to see.

• Practical Solar and Battery Power: For a long time, the biggest drawback of wire-free cameras was terrible battery life. But thanks to huge improvements in battery technology and super-efficient solar panels, you can now place a camera almost anywhere. A small, affordable solar panel can often provide enough juice to keep a camera running 24/7. This makes them perfect for monitoring tricky spots like a back fence, a detached garage, or a garden shed without the headache of running power cables.

Future-Proofing Your Security Investment

To make sure your system stays relevant as technology moves forward, think about easy upgrades from the start. Choosing a system from a reputable brand that supports a wide range of devices, like PCI Audio-Video Security Solutions, gives you that flexibility. This way, you can add newer cameras with better resolution or smarter features down the road without having to rip everything out and start over.

By focusing on a solid network foundation and picking brands known for consistent software updates, you can build a DIY security camera system that grows with you and protects your home for years to come.

Keeping Your System Running Like New

A DIY security camera system is only as good as its last check-up. It’s easy to install your cameras, breathe a sigh of relief, and then completely forget about them. That is, until something happens, and you discover a key camera was offline or the footage is too blurry to be useful. A simple, practical maintenance routine keeps your system performing at its best without feeling like a chore. The real goal here is to catch small issues before they snowball into major security gaps.

Proactive System Check-Ups

The first signs of trouble are often subtle. You might notice a slight, intermittent dip in video quality, or maybe a camera takes an extra second to connect on your app. These aren't just minor glitches; they can be the first hints of a failing power supply, a water-damaged cable, or a hardware issue that needs a closer look. Instead of waiting for a complete failure, it's smart to get into the habit of performing quick, regular tests.

The easiest way to stay on top of this is by creating a simple maintenance schedule. Think of it as a quick health check for your security setup to ensure everything is in working order.

To help you get started, here is a breakdown of common maintenance tasks, how often to do them, and what to look for.

DIY Security Camera Maintenance Schedule

Monthly, quarterly, and annual maintenance tasks to keep your security system operating at peak performance

Task	Frequency	Time Required	Tools Needed	Warning Signs
Check Live Feeds	Monthly	5 minutes	Smartphone/PC	Offline cameras, blurry or discolored video
Clean Camera Lenses	Quarterly	15-20 minutes	Microfiber cloth, gentle cleaning solution	Streaks, sun glare, poor night vision
Inspect Cables & Connections	Quarterly	10 minutes	Flashlight	Frayed wires, loose connections, water damage
Test Motion Alerts	Quarterly	5 minutes	Yourself	Delayed or missed notifications
Update Firmware	As Needed	10-15 minutes	Smartphone/PC	App notifications, performance issues
Check Weatherproofing	Annually	15 minutes	Silicone caulk	Cracked seals, water ingress signs

This schedule acts as a great starting point. The monthly check is as simple as opening your app and cycling through your cameras. The quarterly and annual tasks require a little more hands-on effort but are critical for preventing long-term damage and performance decay.

Just like the monitoring station shown above, your goal is to see all your cameras online and recording clearly. A black screen or a glitchy feed is an immediate red flag that needs investigating.

Software and Seasonal Care

Don’t just focus on the hardware; the software running your system is just as important. It’s tempting to ignore those firmware update notifications, but they are often released by manufacturers to patch security holes and improve how your cameras work. A good rule of thumb is to apply security-focused updates immediately. For major feature updates, you might want to wait a week or two just to see if other users report any bugs.

The changing seasons also bring their own set of challenges. After a heavy pollen season in the spring, a quick lens cleaning can make a huge difference in image clarity. Before winter arrives, it's a good idea to double-check that all your outdoor camera seals are intact to keep moisture from seeping in during heavy rain or snow.

By making these simple tasks a regular part of your home maintenance routine, you ensure your DIY security camera system remains a reliable guardian for your property.
